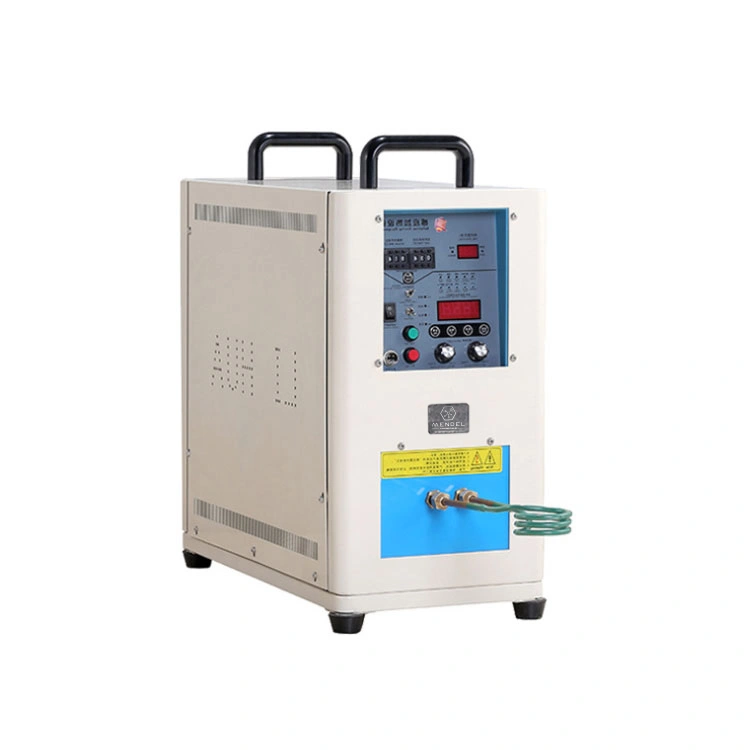

7KW Dual Station Bench Top Induction Heater with Timer Control

The 2m long power cable allows heating station and the control station being located up to 2m from each other for operation safety. The 7KW Dual Station Bench Top Induction Heater with Timer Control is a versatile and efficient technical solution designed for various applications. It operates on a single-phase working voltage of 208-240V AC, 50/60 Hz. The system's maximum input current is 34 Amp, requiring a minimum 40A breaker for safe operation. It comes with a power cable included, and it is recommended to use a twist-lock plug with a 10AWG power cable for optimal performance. The output frequency is adjustable within the range of 30-80 kHz, with a heating current capacity of 200-600 Amps. The system's maximum input power is 7 KW, featuring a duty cycle of 80%. It allows for a maximum distance of 2 meters between the heater and controller and can handle samples weighing up to 1 kg. The device offers flexible control options, including automatic timer control and manual control, which can be selected as needed. Manual control can be facilitated using a foot pedal, and users can customize settings for automatic heating time, dwell time, and cooling time, all within the range of 1-99 seconds. Additionally, one port is integrated to connect to the temperature controller and thermocouple, enabling automatic temperature control through the optional control unit. Efficient cooling is achieved through both air and water cooling mechanisms. The rear fan provides air cooling, while the water cooling system features a flow rate of 2~5 L/Min and a pressure of 0.2 MPa (29 Psi). The system includes safeguards against overpressure and over-temperature. Although tap water can be used for cooling, it is highly recommended to utilize a Recirculating Water Chiller for enhanced performance. The package includes two induction coils with the following dimensions: Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H) Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H) The system also comes with a foot pedal, cable, and water connector for added convenience. A digital display is incorporated into the design, providing real-time information on output power and current. In terms of product dimensions, the control station measures 18" x 8" x 17", while the heating station measures 12" x 8" x 13". The device is backed by a one-year limited warranty with lifetime support. It has a net weight of 25 kg (55 lbs), making it suitable for various laboratory and industrial applications.
